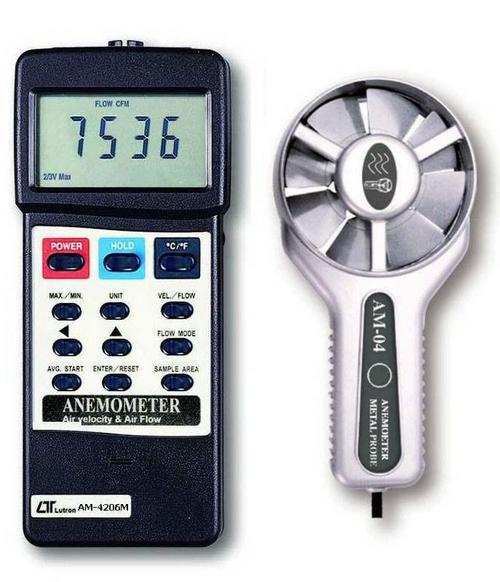

Digital Anemometer

Digital Anemometer
Digital Anemometer
Send Inquiry
Product Code : Onyx A1
Product Description

With the help of our experienced professionals & latest facilities, we have become a prominent manufacturer & supplier of Digital Anemometer. These equipments are available in several specifications as per the requirements of clients. The anemometer is manufactured with high-quality raw materials and modern technology. These devices are known for their features such as easy use & handling, longer working life and dependable performance. We offer the Ultrasonic Anemometer to both national and international market at affordable prices.

Product Specifications:

  • Metal vane probe, heavy-duty and auto shut off to save battery life
  • Thermistor sensor for measurement of temperature
  • Air flow: CMM ( m^3/min. ), fast response time
  • CFM ( ft^3/min.), Built-in indicator for low battery
  • Air velocity: m/s, ft/min, km/h, knots & mile/h
  • Runs from 006P DC 9V battery
  • Air temperature: C degree, F degree
  • RS 232 computer serial interface
  • 3 air flow mode: Instant, 2/3 Vmax & Average
  • Easy operation with separate probe
  • Low-friction ball vane wheels are accurate in various measurement environment, both high and low velocities
  • Use of durable and long-lasting components
  • Dual display LCD, including a light weight & strong ABS-plastic
  • Record minimum and maximum reading housing case with recall
  • High accuracy for a broad range of applications
  • Data hold, check air-conditioning and heating systems
  • Microcomputer circuit renders specific measure air velocities, wind speeds and functions.


Exclusive one-chip of micro- computer LSI circuit.


* 13 mm (0.5") Super large LCD display.

* Dual function meter's display.


Air velocity : m/s (meters per second), km/h (kilometers per hour), ft/min (feet/per minute), knots (nautical miles per hour), mile/h (miles per hour),

Air flow : CMM ( m^3/min. ), CFM ( ft^3/min. )

Air temperature : ℃, ℉.

Data hold.

Memory Recall

Record maximum & minimum reading value with recall.

Sensor Structure

Air velocity & Air flow : Metal structure, Conventional twisted van arm and low friction ball bearing design.

Temperature : Thermistor.

Power off

Auto shut off saves battery life or manual off by push button.

Sampling Time

Approx. 0.8 sec.

Operating Humidity

Less than 80% RH.

Operating Temperature

0℃ to 50℃( 32℉to 122℉). * Meter only.

Data Output

RS 232 PC serial interface.

Power Supply

Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent.

Power Current

Approx. DC 8.3 mA.


381 g/0.84 LB.


Main instrument: 180 x 72 x 32 mm ( 7.1 x 2.8  x 1.3 inch ).

Accessories Included

Sensor head : Round, 72 mm Dia.

Instruction manual  1 PC.

Sensor probe 1 PC.

Optional Accessories

Carrying case 1 PC.

Software ( Windows version, data record & data acquisition )


RS232 cable UPCB-01
