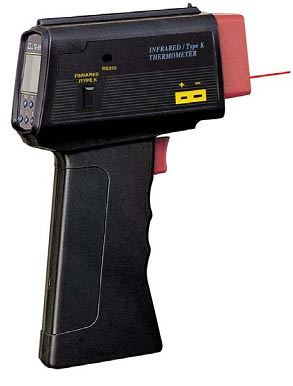

IR Thermometer

IR Thermometer
IR Thermometer
Send Inquiry
Product Code : OnyxT1
Product Description

Supported by the team of adroit professional and experience in this market, our organization has emerged as one of the famous manufacturers and suppliers of IR Thermometer. These thermometers are made using top quality raw materials and ultra modern technology at our state of the art manufacturing unit. Infrared Thermometer is known for its ability to withstand high temperatures and longer working performance. All these thermometers are used for checking mechanical equipments for hot spots. We offer these thermometers to our national and international customers at market competitive price.

Product Specifications:

  • Infrared thermometer + Type K thermometer, 2 in 1.
  • Non-contact, temperature measurement, Infrared thermometer -20 to 400 ( -4 to 752° ).
  • It is type K thermometer having range upto  -100.0 to 1300.0 (-148.0 to 2372.0 °)
  • It has 0.1 display resolution both for the measurement of  Type K thermometer and IR thermometer.
  • It has Microcomputer circuit with high performance.
  • It is equipped with auto power shut off  which saves the battery

Display (Dual display with annunciator) :

Main display : 10 mm (0.4") LCD, 5 digit.

Small display : To show the emissivity value.

Sensor Type

Infrared thermometer (Non contact temperature measurement)

Type K thermometer


℃, ℉, Data hold, Memory ( Max., Min. ), Relative measurement, Emissivity adjustment (IR thermometer).


0.1 degree.


Exclusive microcomputer circuit, the software build in linearity correction instead the traditional hardware circuit.

Emissivity Adjustment

Range : 0.20 to 1.00. Adjustment by pushing button on front panel.

Target Guide

Red color, laser power less than 1 mW.

Probe Input Socket

Standard 2 pin thermocouple socket.

Sampling Time

Approx. 1 second.

Hold Function

To freeze the display reading value.

Memory Recall

Memorize the Maximum, Minimum reading with recall.

Offset Adjustment

Available for thermocouple thermometer offset adjustment by pushing button on front panel.

Over Indication


Data Output

RS232 PC serial interface.

Power Supply

Alkaline or heavy duty type, DC 9V battery, 006P, MN1604 ( PP3 ) or equivalent.

Power Consumption

Approx. DC 12 mA ( w/o tagret light on ).

Approx. DC 23 mA ( with target light on ). Above consumption value is calculated under the function of IR thermometer.

Operating Temperature

0 to 50 ℃ (32 to 122 ℉).

Operating Humidity

Less than 80% RH.


260 g/0.57 LB.


195 x 120 x 57 mm. ( 7.7 x 4.7 x 2.2 inch).

Standard Accessory

Operational manual..... 1 PC.

Optional & accessories

Hard carrying case Model : CA-06

RS232 cable Model : UPCB-02

Application software, windows version. Model : SW-U801-WIN
